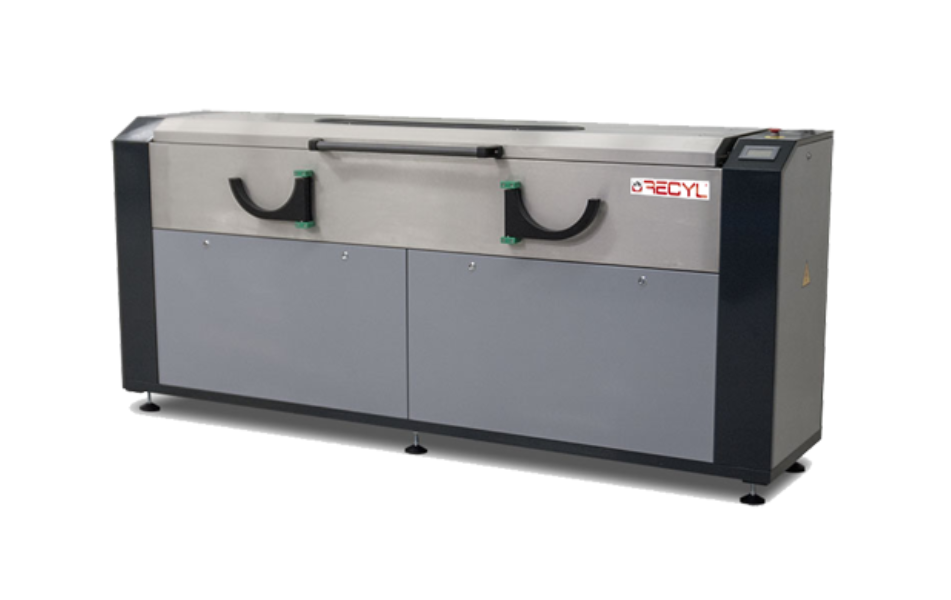

ANILOX SPRAY CLEANER | FULLY AUTOMATED ANILOX WASHING, RINSING & DRYING
The new Anilox Spray Cleaner is an automatic equipment designed to clean sleeves or anilox used with solvent, UV or water based inks.
The cleaning process involves three steps:
- spraying the anilox with the heated Recyl cleaning product (50°C),
- rinsing with high pressure water (80 to 100 bar),
- drying with compressed air (5 bar).
- The anilox is then immediately ready for storage or reuse for another run.
- The Anilox Spray Cleaner range is available in 4 models for maximum anilox washing lengths of 100, 180, 250 and 300 cm, so it is adapted to the various needs of printers in the medium and large web markets.
- The Anilox Spray Cleaner range is used with our Recyl W200 product suitable for all types of ink and is suitable for ceramic anilox or chrome cylinders.

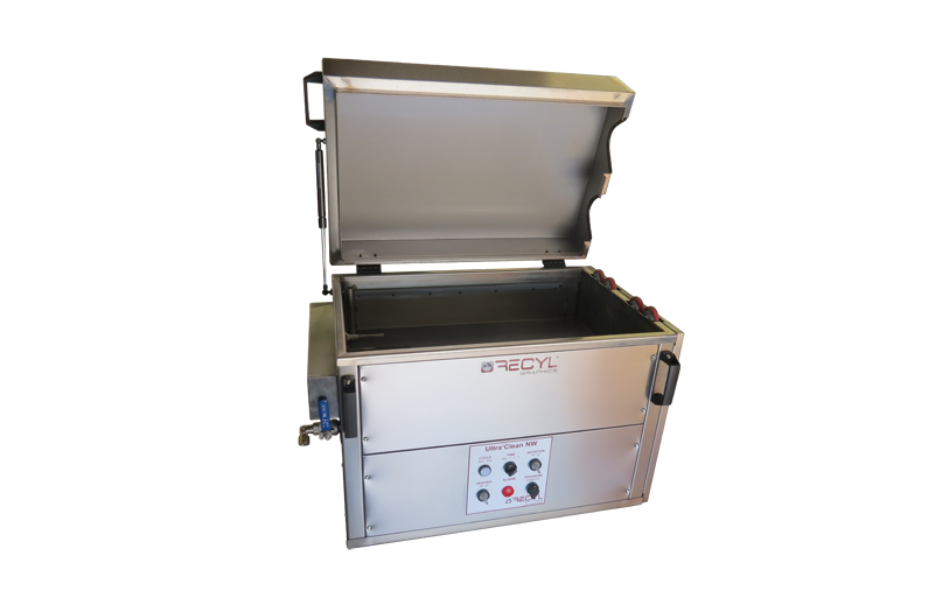

NEXTWAVE | ULTRASOUND CLEANING
NEXTWAVE | ULTRASONIC CLEANING MACHINE
RECYL introduces its new generation of Anilox Ultrasonic Cleaning Machine, Recyl NextWave, developed completely in France, in partnership with SINAPTEC, the French leader in solutions using Ultrasonic technology.
The NextWave machine is used with our Recyl W200 product, which is suitable for all types of ink.
Integrated functions:
- Ultrasound Power and Frequency Management & Control
- Cleaning Tank Temperature Management & Control
- 2-directional Rotation
- Tank Level Check
- Frequency Sweep
- Diagnostics
The new Recyl NextWave Ultrasonic Cleaning machine enables everyone these to be controlled and guarantees reliable Anilox cleaning in the long term with consistent cleaning results, thanks to the double-closed loop regulation system.
100% safe and effective cleaning for your Anilox!
NextWave NW2 Model: Simultaneous Cleaning of 2 Anilox rollers, special for Narrow-web, up to 700 mm.
Currently the Recyl NextWave machine is a model for narrow web but our R&D department is working on larger models (for the mid & wide web printers), to discover soon.

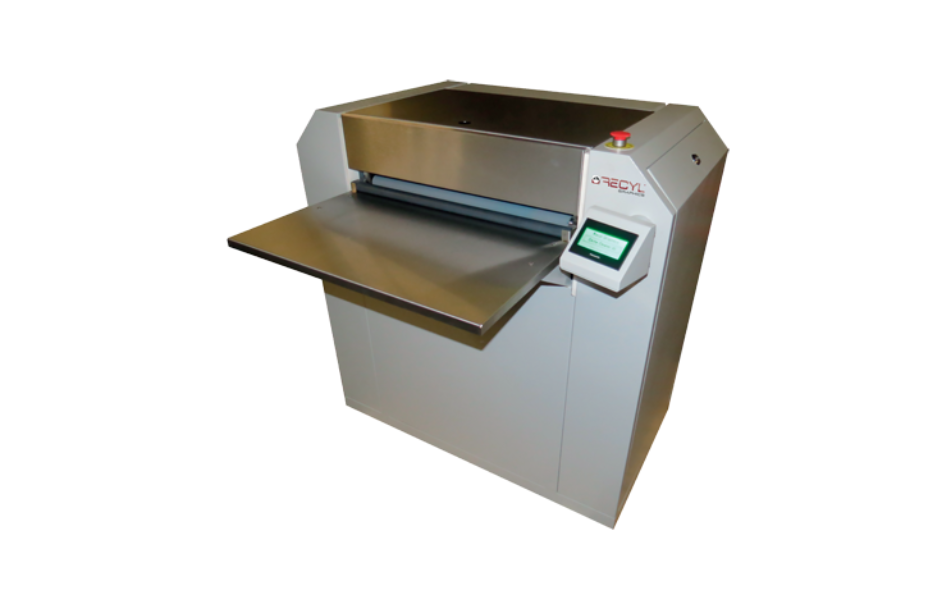

CLICHÉ CLEANER | PLATE CLEANING MACHINE
CLICHÉ CLEANER | FAST AUTOMATED PLATE WASHING, RINSING & DRYING
Cliché Cleaner Range: new cleaning concept with a more reliable, simpler and more efficient process thanks to its fast 2-lateral brush.
The plates can be manually or automatically transported into the machine with the help of a feeder belt (optional).
After cleaning, rinsing and drying, the plates are immediately ready for storage or reuse for another print run.
The Cliché Cleaner range comes into 7 models for maximum plate widths of 45, 65, 82, 92, 115, 140 and 180 cm, so it is adapted to the various needs of printers in the narrow, mid and wide-web markets.
The Cliché Cleaner machine allows to clean plates soiled by any type of ink can be used with our Recyl Cleaning products:
- Quick’Wash UV, Quick’Wash Flex, PK Water Plus / Narrow Web, Labels
- Quick’Wash Cliché (new), Quick’Wash Solvant, Quick’Wash Solvant PU / Mid Web & Flexible
- Quick’Wash Premium & Quick’Wash Booster / Wide Web & Corrugated./li>

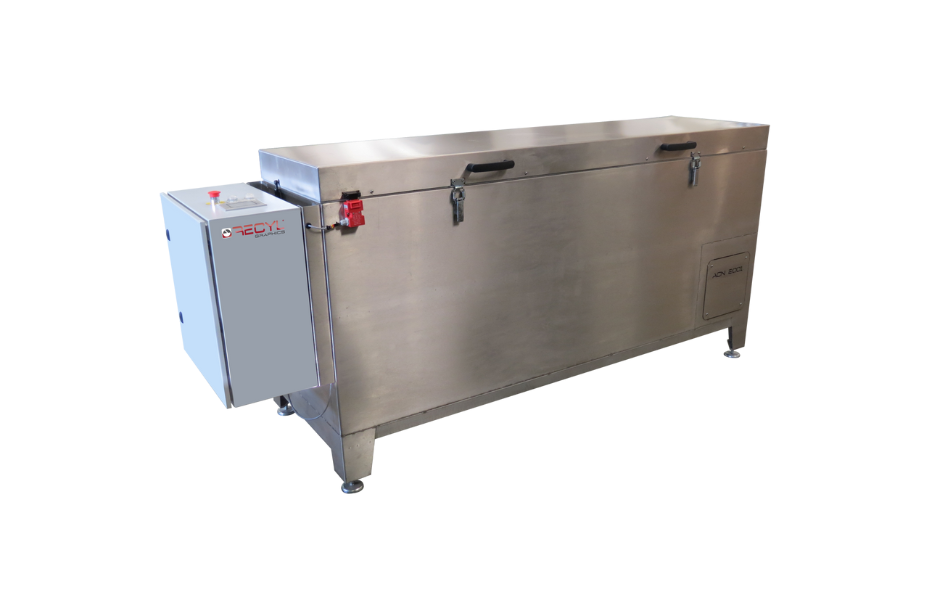

AC-N | CHEMICAL UNCLOGGING
AC-N | UNCLOGGING SYSTEM FOR ANILOX ROLLS AND SLEEVES
Machine for unclogging anilox rolls by coating with cleaning products: Recyl Clean Plus or Recyl Cobra (for deeper cleaning).
The AC-N machine can clean cylinders soiled by any type of ink.
Principle of operation:
Automatic application of the cleaning product with a peristaltic pump .
Application of the product with a squeegee to penetrate the ink contained in the cells.
Soak 10 - 15 minutes, depending on the condition of the screen anilox.
Automatic rinsing of the surface with the high-pressure cleaner.
Benefits :
Economical cleaning, the AC-N machine consumes only a very small quantity of product (~30g/m3 of cylinder cleaned).
Very effective and fast cleaning and extremely easy. Uses the same concept as a flexographic printing press with a synthetic (fiberglass) doctor blade.
Integrated functions:
