ALPHASONICS

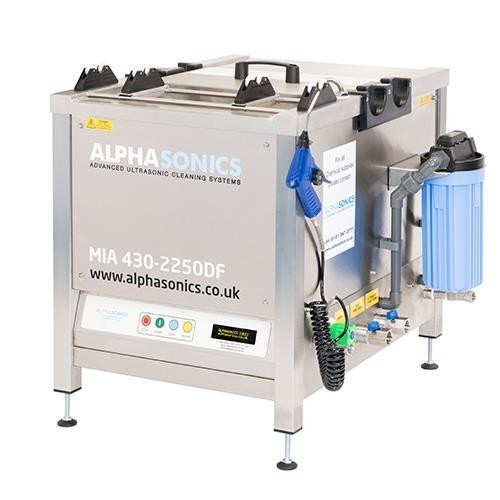

Mia Ultrasonic Cleaning Benchtop System A highly affordable system with high specification features with a maximum weight capacity of 120 kilos.

• Compact and simple to control
• Tank lengths from 430mm to 2300mm in 10mm increments
• Tank standard widths 250mm, 350mm, 450mm and 500mm
• Non standard tank widths available
• Includes rinse tank, spray wash facility and services management bulkhead
• Manually activated pump and filtration system for tank cleanliness and chemical longevity
• Closed rotation
• LCD cycle/diagnostic display
• PLC control
• Available in Single or Dual frequency

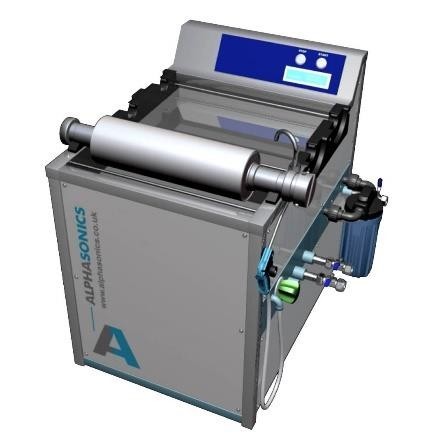

The Miranda series of floor standing models Top quality Alphasound technology at an affordable price.

• Single frequency only for safe, regular effective cleaning of rolls with screen counts up to 800lpi (315lpc)
• Standard format includes lengths from 430mm to 2300mmin 10mm increments
• Tank widths 250mm, 350mm, 450mm and 500mm
• Non standard tank widths available
• Automatic pump and filtration cycle for tank cleanliness and chemical longevity
• Closed rotation
• Low level lock out
• Temperature fall back
• Includes rinse tank, spray wash facility and services
• PLC control/LCD cycle/diagnostic display
• management bulkhead
• Active Cavitation (pat)

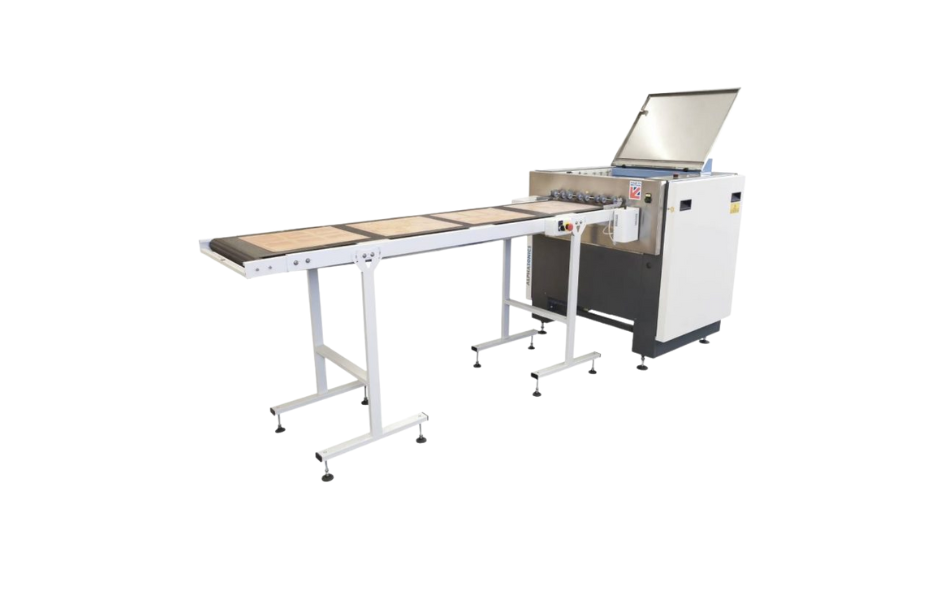

A compact system offering unmatched cleaning results worry and effort free. The fully automated brush type plate cleaner eliminates the problems associated with dirty plates. With optional conveyor and outlet systems, the PCX series delivers clean and dry plates with minimum fuss.

• Systems for narrow web through to corrugated
• Available widths: 450mm, 650mm, 950mm, 1200mm and 1400mm.
• Plates clean to the highest standards in minutes
• Easy to load and unload/Time and labour saving
• Settings are easily adjustable
• Rinsing and drying systems are included
• Closed circuit water recycling and filtration
• Little or no maintenance required
• External water recycling, inlet and outlet conveyor options available

Plate cleaning is historically a labor intensive task, even with an infeed conveyor. Plaeto frees up the labor requirement, enabling other tasks to be undertaken while plates are automatically loaded or cleaned in the PCX system.

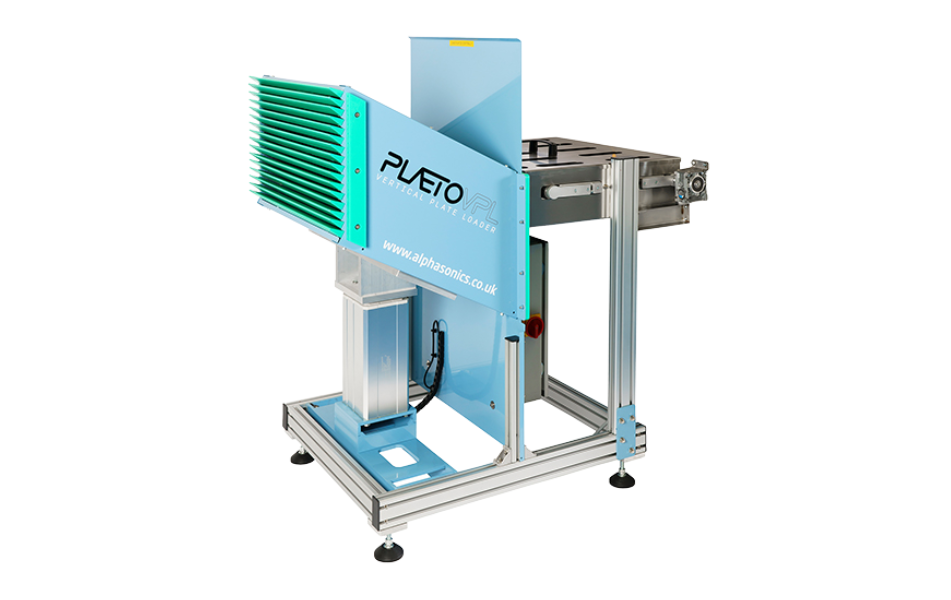

The Plaeto vertical plate loading system from Alphasonics has been designed to maximize the throughput of our PCX range of plate cleaners, while maintaining a small footprint

• Situated in front of the PCX
• Automatic loading system
• No need for an operato
• Available in five widths: 450mm, 650mm, 950mm, 1200mm and 1400mm
• Minimum capacity between 15 and 30 plates.
• Suitable for printers with a high volume of plates to clean
